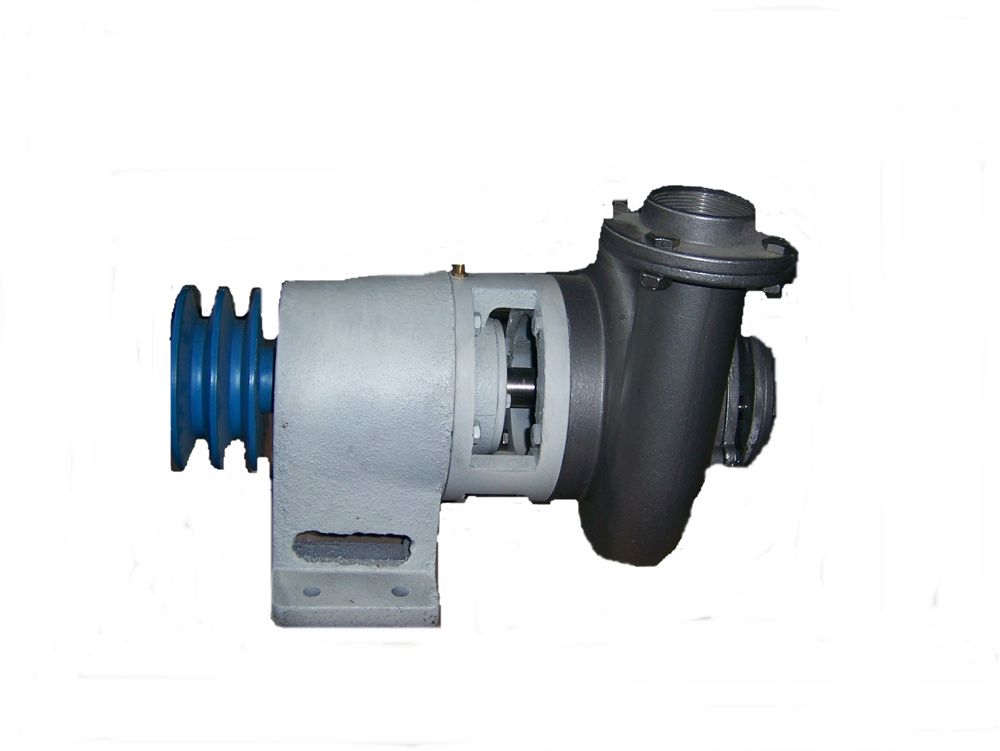

不锈钢海水泵技术参数
Technical parameters of stainless steel sea water pump
型号 Model | 流量 Flow | 扬程 Lift | 转速 Speed | 电机功率 Motor power | 进出水口尺寸 Inlet and outlet dimensions |
m3/h | m | r/min | KW | in |
PC8000-1-1/4” | 20 | 18 | 3000 | 2.5 | 1-1/4” |
PC8000-1-1/2” | 25 | 21 | 3000 | 3.0 | 1-1/2” |
PC8000-2” | 32 | 26 | 3000 | 4.0 | 2” |
PC8000-2-1/2” | 38 | 32 | 3000 | 5.5 | 2-1/2” |
PC8000-3” | 45 | 38 | 3000 | 7.5 | 3” |
I型1-1/2” | 28 | 21 | 3000 | 3.0 | 1-1/2” |
Ⅱ型-1-1/4” | 22 | 18 | 3000 | 2.5 | 1-1/4” |
Ⅲ型2”-RH | 35 | 28 | 3000 | 4.0 | 2” |
Ⅳ型-2-1/2”-RH | 42 | 35 | 3000 | 5.5 | 2-1/2” |
